10 / 107 - 860

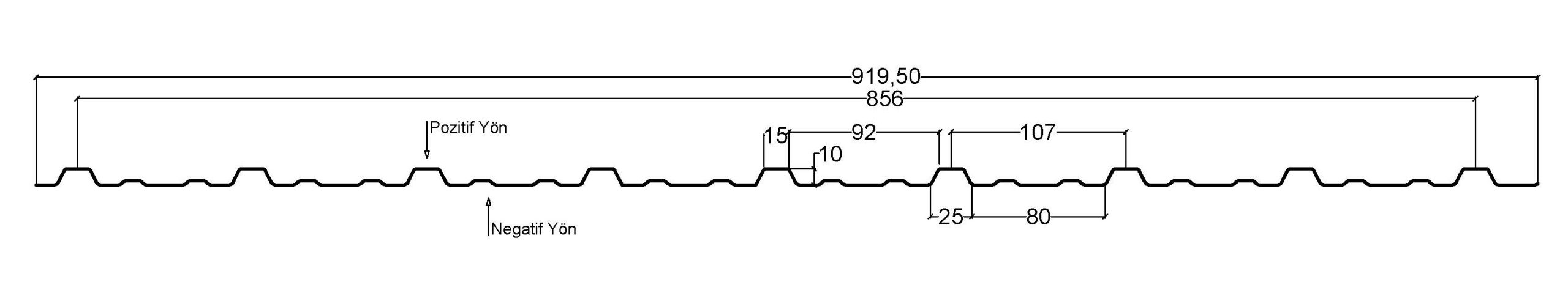

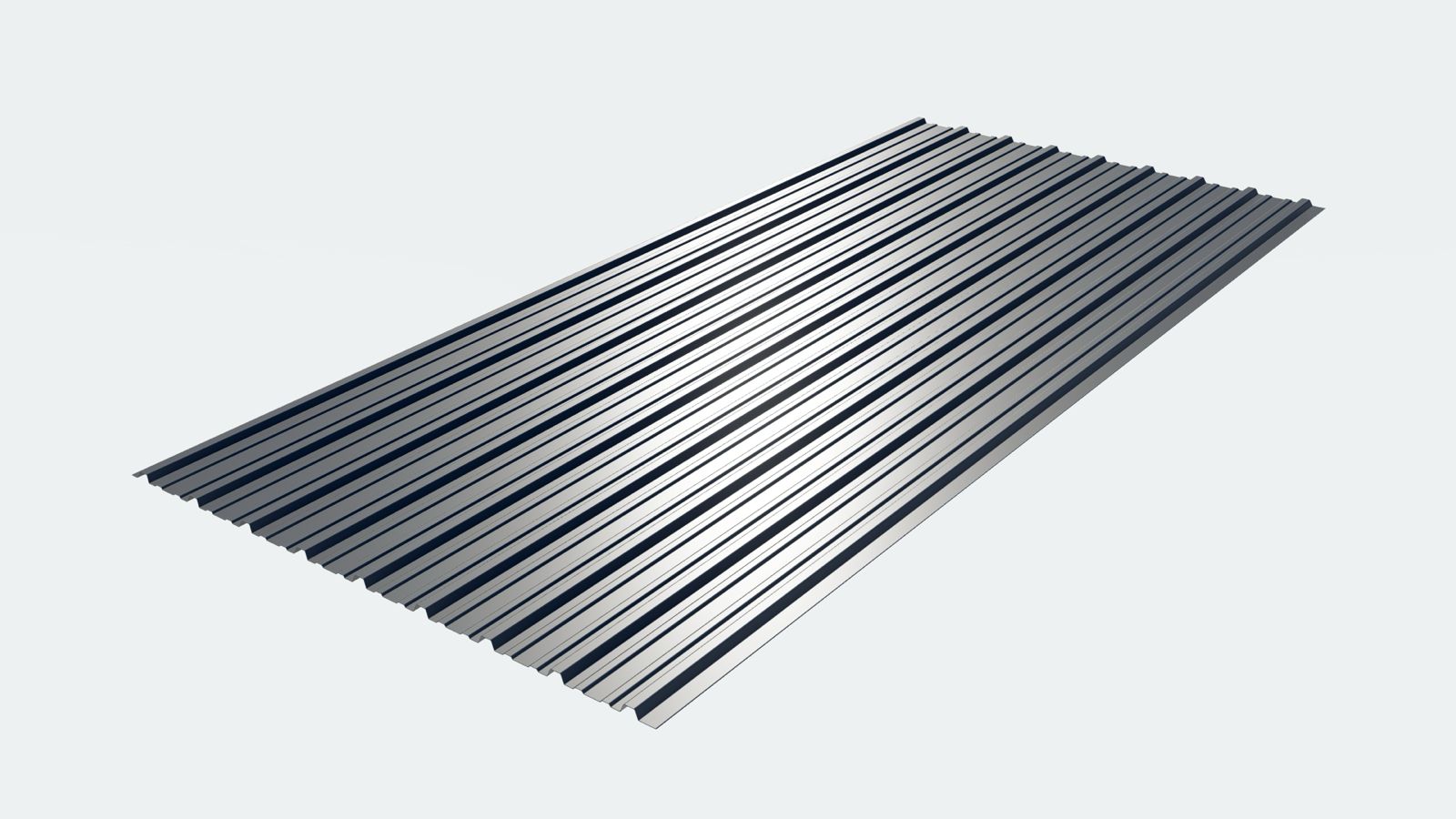

The 10/107-860 trapezoidal sheet profile consists of 9 ribs in total, with a rib height of 10 mm, a spacing of 107 mm between the ribs, and an effective coverage width of 860 mm.
Thanks to its low rib height and closely spaced rib configuration, it offers an aesthetic appearance and an economical solution.
It is particularly preferred for partition wall applications and facade cladding; its low-rib structure makes it a suitable alternative for projects where architectural appearance is a key priority.
Alternative RAL Codes
RAL 1018
RAL 2004
RAL 3009
RAL 3020
RAL 5015
RAL 6029
RAL 7016
RAL 7038
RAL 9002
RAL 9006
RAL 1018
RAL 2004
RAL 3009
RAL 3020
RAL 5015
RAL 6029
RAL 7016
RAL 7038
RAL 9002
RAL 9006
